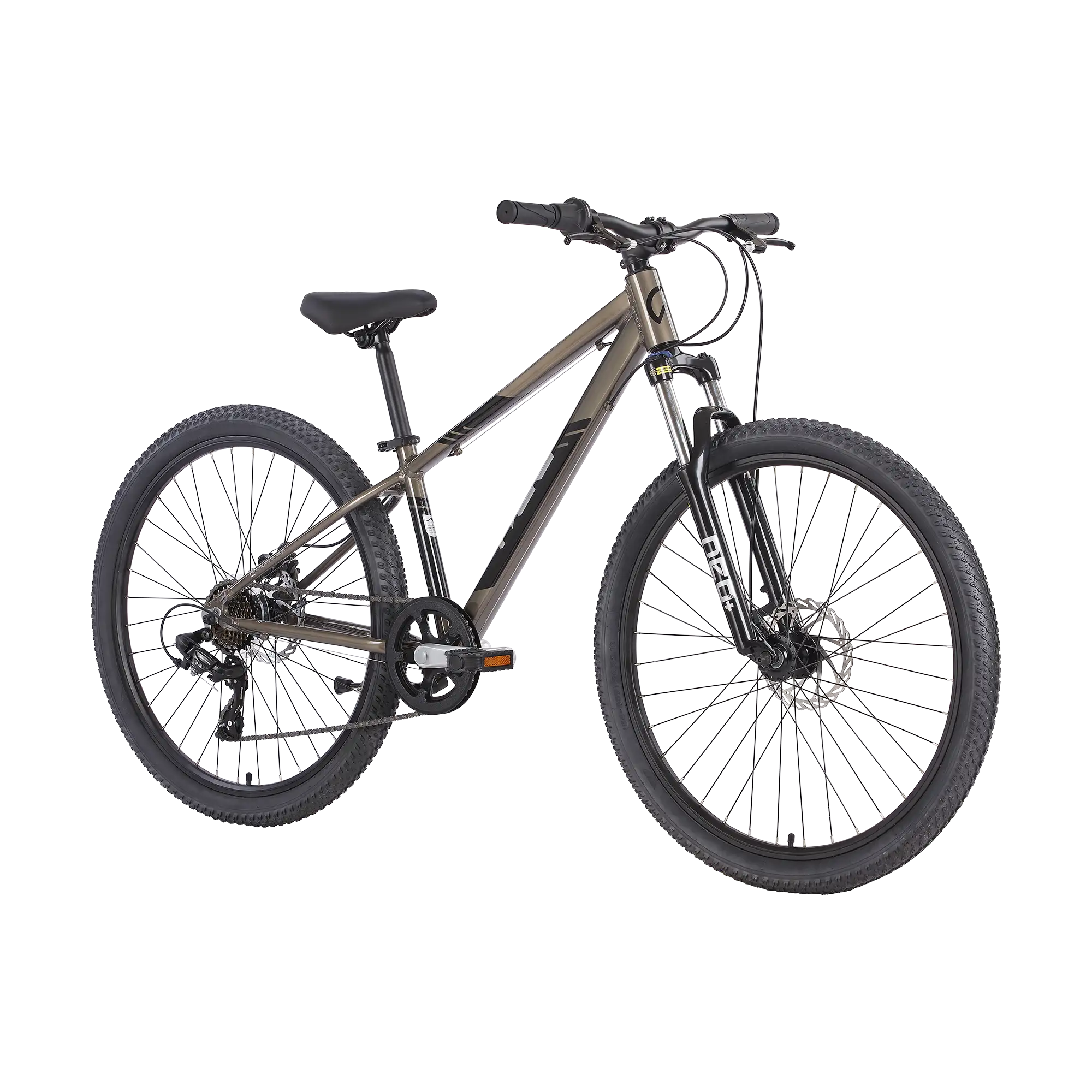

Neo Disc+ 26 7s
  • Neo Disc+ 26 7s
  • Neo Disc+ 26 7s
  • Neo Disc+ 26 7s
  • Neo Disc+ 26 7s
Neo Disc+ 26 7s

Age 7 - 12+ years

Height 145+ cm

Neo Disc+ 26 7s

ColourChrome Sand
FIND A STOCKIST

Designed from the ground up to excel in a wide range of terrains, the Neo Disc+ 26 7s features a front suspension fork with 100mm of travel and lockout. This allows kids to switch suspension on and off, so they can transition from dirt to pavement and back again, or climb hills more efficiently.

Powerful and reliable disc brakes keep kids in control, no matter the weather or riding conditions, while 24 x 1.95 micro-knobby tyres are designed to provide extra grip on the dirt.

Throw in 7 speed shifting, a low standover height to boost rider confidence, and lightweight kid-sized components, and the result is a kid’s bike built to venture off the bike path and into the gravel and dirt.

WHAT'S NEW?

GEN 3

Our Gen 3 Disc+ frames feature off-road inspired geometry, with suspension and Shimano gearing while retaining a low stand over height.

2 frame styles available.

Performance and Comfort

Wider knobby tyres provide better traction, stability, and comfort on rougher terrain.

Chrome Finish

Our iconic brushed alloy look has been enhanced with a range of vibrant new colours.  We’ve retained our brushed alloy look, and layered it with a premium chrome finish - the Neo range has never looked as colourful!

Additionally, matte black handlebars, with matching black brake levers and spokes compliment the new premium finish.
Neo Disc+ 26 7s

Features

  • All-new GEN 3 lightweight alloy disc-specific frame, with slack head tube angle, and a choice of curved or straight top tube. Designed with a low stand over height, and low centre of gravity to boost rider confidence and safety.
  • Suspension fork and wide 2.1” knobby MTB tyres for grip, comfort, and performance from pavement to dirt riding.
  • Full alloy child-specific short reach brake levers, combined with powerful disc brakes.
  • Light weight alloy hubs, rims, handlebars and stem, which reduces the overall weight of the bicycle.
  • Super comfortable junior-specific saddle and grips, for ultimate riding comfort.
  • Light weight alloy crank set with child-specific easy-pedalling gearing.
  • Shimano 7 speed gears for reliable shifting performance.

Specifications

FRAME
Neo+ GEN 3 disc-specific lightweight alloy frame - with low stand over height, hydroformed tubes and streamline stays
FORK
26” ZOOM-525AMS alloy suspension fork, 100mm travel, with lockout
HEADSET
Semi-sealed integrated 1-1/8" A-head
HANDLEBAR
Lightweight alloy low riser 560mm
GRIP
Kraton grips
HEADSTEM
Alloy A-head 4 bolt stem with Rise: 10° Bore: 25.4mm, L: 60mm.
CRANKSET
Alloy oversize 3 piece crank with 36T chainwheel and double chainguard
CHAIN GUARD
Double guard on chainring
BOTTOM BRACKET
Nutted bottom bracket
PEDALS
High impact plastic
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano TX-35
SHIFT LEVERS
Shimano Revoshift 7 speed rear
CASSETTE
Shimano MF TZ21 14-28T 7 speed freewheel
CHAIN
KMC Z-51
BRAKES
JAK-5 mechanical disc brake, with 160mm rotors, short reach alloy lever for kids
WHEELS
26" lightweight alloy 32 hole double wall rims, stainless steel spokes, and alloy quick release hubs
TYRES
26” x 2.1 MTB
SADDLE
Neo Comfortech youth saddle
SEATPOST / CLAMP
27.2mm alloy micro adjust with quick release clamp
EXTRAS
Alloy kickstand
Specifications subject to change without notice.

Geometry

Recommended Age 7 - 12+ years

Recommended Height 145+ cm

To ensure you have the correct size and fit. we recommend visiting your nearest Neo stockist to arrange a test ride and a proper bike fit.
A - SEAT TUBE (CENTRE TO TOP) 335
B - TOP TUBE LENGTH (EFFECTIVE HT TOP) 527.3
C - SEAT ANGLE 73.0°
D - HEAD ANGLE 68.0°
E - FORK RAKE 40
F - WHEEL BASE 1040
H - CHAIN STAY LENGTH 430
I - HEAD TUBE LENGTH 110
J - BB DROP 35
Custom image

TECHNOLOGY

Hydroformed Frame

For the Neo+ range, we carefully selected hydroformed tubes to create our new frames. Normally reserved for more high-end adult bikes, the hydroforming process allows the tubes to be reshaped into sleeker, more advanced profiles, resulting in an increased strength to weight ratio, along with a refined and sporty finish.

Featherweight Alloy

Featherweight alloy construction used in our Neo+ models not only shaves weight off the bike, but also improves overall handling without sacrificing strength.

Comfortech Saddle

Light and comfy saddles, sized specifically for each Neo model, help smooth out the bumps, and make the ride enjoyable.

Energy Efficient Design

How do you make a bike easier to ride? To achieve this in our Neo bikes, we looked at several factors: Weight - The lighter the bike, the easier it becomes to start moving, maintain speed, and stop. In addition to alloy frames and forks, we select lightweight alloy components as well. Fit - If the bike doesn’t fit well, your child exerts extra energy to compensate. We select narrow handlebars to align properly with the shoulder width and arm length of children. Creating the optimal riding position allows for comfortable riding and efficient pedaling.

Featherweight Alloy

Featherweight alloy construction used in our Neo+ models not only shaves weight off the bike, but also improves overall handling without sacrificing strength.
